SOLAR ENERGY
Installers & partners

Fronius Tauro & Tauro ECO Designed to perform.

The robust inverter for large-scale PV systems

Powerful in any situation: the robust Fronius Tauro inverter impresses not only by offering maximum flexibility in terms of system design, but also by its minimal overall system operating costs. The robust project inverter makes commercial large-scale photovoltaic systems even more cost-effective.

  • Quick installation and efficient maintenance
  • Power electronics protected by active cooling
  • Double-walled housing ensures optimum temperature compensation
  • Stable high performance even at ambient temperatures of up to 50 °C

Fronius Tauro: Designed to perform.

Fronius Tauro

  • Power category: 50 kW
  • Ideal for challenging PV configurations

Fronius Tauro ECO

  • Power categories: 50, 99,99 & 100 kW
  • Ideal for cost-optimised systems

Robustly designed for long service life

Direct sunlight and high temperatures are no problem for the robust Fronius Tauro. On the contrary: the robust project inverter was specially developed to deliver unrestricted full power even under the harshest environmental conditions.


  • Power electronics protected by active cooling
  • Double-walled housing ensures optimum temperature compensation
  • Stable high performance even at ambient temperatures of up to 50 °C
Leistungsteiltausch Fronius Tauro

Extremely cost-effective

Fast installation and fast service: Fronius Tauro is quick to install and efficient to maintain. If necessary, only the affected power stage set needs to be replaced on site rather than the entire project inverter, thereby saving time and conserving resources.


  • Quick installation and efficient maintenance
  • Power stage set replacement (27 kg) is easily accomplished by one person
  • Efficient handling of service cases and targeted online support with Fronius Solar.SOS
Fronius Tauro - einfache Inbetriebnahme

Everything at a glance

Pretty smart: Fronius Tauro – like all Fronius products – can be conveniently monitored, controlled and maintained from a smartphone or PC.

Additional elements and third-party components are easily integrated thanks to the open system architecture.


  • Convenient monitoring, control and maintenance
  • Open system architecture
  • Easy integration of additional elements and third-party components

Maximum design flexibility

Fronius Tauro offers maximum flexibility in terms of both system design and installation. Whether centralised or decentralised, vertical or horizontal: the Fronius Tauro series can be easily adapted to customers’ individual needs and circumstances. To this end, the flexible Tauro and the cost-effective Tauro ECO can be combined with each other in any way you choose.

The 30 amperes version of the Fronius Tauro Direct is also designed for larger PV modules with high amperages.

Practical AC daisy chaining also makes it possible to link multiple inverters together. This saves on additional components and cabling, thus keeping the overall system operating costs low.


  • Flexible system design
  • Tauro & Tauro ECO can be combined
  • AC daisy chaining
  • Integrated surge protection device
  • Fewer components and cables required

Fronius Tauro The product advantages of the robust inverter at a glance
Double-wall design With its double-walled housing, the Tauro ensures optimum temperature compensation and protects the sensitive power electronics from overheating.
1
Centralised and decentralised system Depending on the requirements, Fronius Tauro can be used in a centralised (precombined) or decentralised (direct) system design.
2
Connection options On the AC side, cable cross sections of up to 240 mm² can be implemented. This not only allows maximum planning flexibility, but also means huge cost savings in ongoing operation.
3

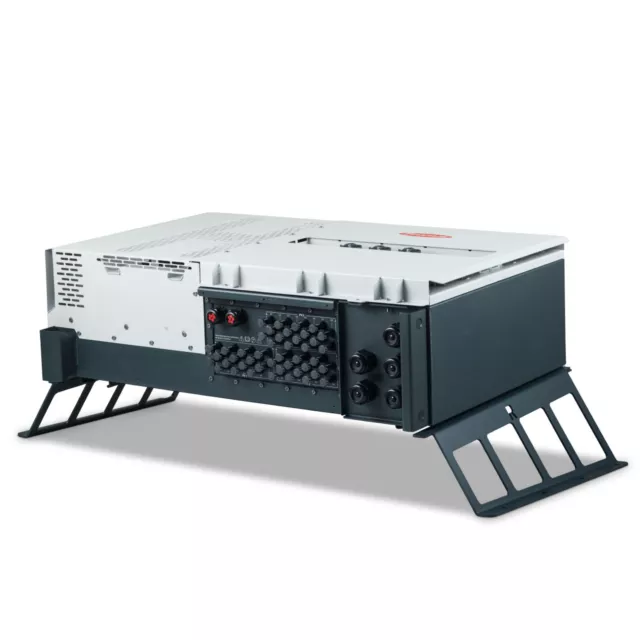

Flexible installation Practical brackets allow Fronius Tauro to be installed vertically or horizontally.
4
1
Double-wall design
With its double-walled housing, the Tauro ensures optimum temperature compensation and protects the sensitive power electronics from overheating.
2
Centralised and decentralised system
Depending on the requirements, Fronius Tauro can be used in a centralised (precombined) or decentralised (direct) system design.
3
Connection options
On the AC side, cable cross sections of up to 240 mm² can be implemented. This not only allows maximum planning flexibility, but also means huge cost savings in ongoing operation.
4
Flexible installation
Practical brackets allow Fronius Tauro to be installed vertically or horizontally.
Active cooling Active cooling continuously transports heated air to the outside, thus protecting the power electronics from heat.
1

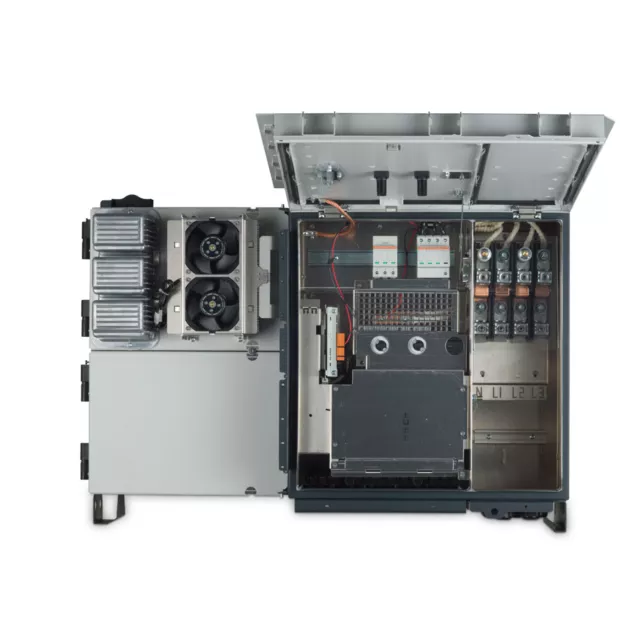

Generous connection area The generously proportioned connection area has space not only for a surge protection device, but also for other third-party components.
2
Component replacement Simple power stage set replacement allows fast service by only one person on site.
3
1
Active cooling
Active cooling continuously transports heated air to the outside, thus protecting the power electronics from heat.
2
Generous connection area
The generously proportioned connection area has space not only for a surge protection device, but also for other third-party components.
3
Component replacement
Simple power stage set replacement allows fast service by only one person on site.

Sustainable throughout

From production to maintenance: sustainability is our promise.

For more than 75 years, Fronius has stood for intensive research, innovative technologies, high-quality products and cost-effective solutions over generations. Fronius Tauro shows that sustainability at every stage of the product cycle pays dividends. The commercial inverter is designed for durability and was developed and produced in Austria with the fewest possible replaceable components. This makes Fronius Tauro particularly robust and failure-resistant, and means that only individual parts need to be replaced during on-site servicing, thereby saving time and conserving resources.



  • Sustainable development and production from Austria
  • Innovative double-walled design
  • Active cooling
  • Simple component replacement

Fronius digital tools: from start-up to maintenance

solar-start-screen

Solar.start – The app by pros for pros

Configure Fronius inverters in just a few minutes: Solar.start makes your work easy.

  • Quick and easy commissioning in just three steps
  1. Network settings
  2. Product configuration
  3. Integration into the Fronius Solar.web monitoring platform
  • Quick access to the web interface for additional settings and functions
  • Full warranty coverage when you register the inverter on Solar.web
  • Link to useful platforms such as Solar.web and Solar.SOS

Simply download and get your inverter up and running!


Solar.SOS – our support app

Fronius Solar.SOS is our way of providing you with reliable support for maintenance, troubleshooting and ordering of spare parts. From the app or your PC – just tell us the serial number or state code of your inverter.

Download & start right away
modules in Greece

Configure project inverters easily online

Create your customised project inverter with just a few clicks: use the configurator to optimally match Fronius Tauro with your PV system requirements.

Based on your configuration, we will prepare a tailor-made offer for you, and you can order Fronius Tauro conveniently online.

Configure now

The commercial solar inverter in action



“This system was our first time working with the Tauro. We were surprised at how easy the units are to install.”

Thomas Rabensteiner,
Project Manager at KPV Solar

Read the reference
webinar

Webinar: The commercial solar inverter for maximum yields

Find out everything there is to know about the robust and simultaneously smart inverter for commercial photovoltaic systems. We will give you an insight into the intelligent product design, the variety of options available, the flexibility in system design and the quickest service around.

Watch the video

Technical data

Technical data Fronius Tauro Fronius Tauro ECO
Power categories  50 kW  50, 99,99, 100 kW
MPP tracker(s)  3  1
MPPT voltage range 400 - 870 VDC 580 - 930 VDC
Max. DC voltage 1.000 V
Cooling system  Active cooling & double-wall system
Degree of protection  IP 65
Installation type Indoor and outdoor installation,
vertical or horizontal
